About IoTEmeter™

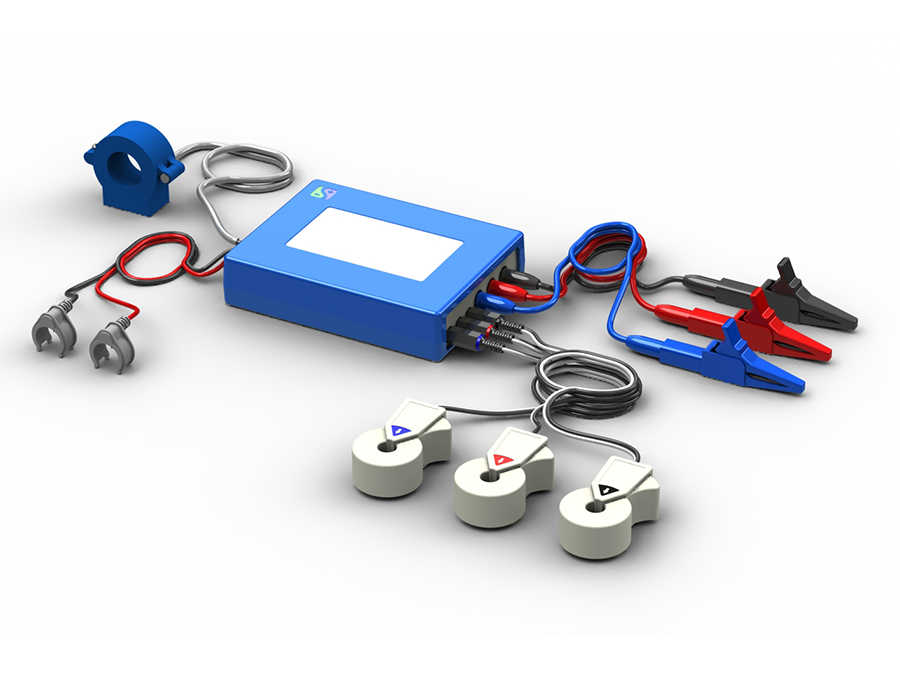

IoTEmeter is a three-phase IoT power and energy meter designed to meet the needs of industrial applications. The IoTEmeter is powered from the AC line and can measure the three-phase AC power with input voltages ranging from 208 – 480VAC with currents up to 200A. In addition, the IoTEmeter incorporates a DC measurement channel for measuring the DC power (voltage and current) of industrial battery chargers thus allowing the device automatically to log and calculate the efficiency and cycle efficiencies for CEC certification. Equipped with WiFi connectivity, all measured data is automatically uploaded to a custom cloud application where detailed reports and analytics are easily generated and displayed.
- First integrated three phase IoT power metering unit with simultaneous AC and DC measurements
- Easily configurable through mobile and cloud application
- Cloud integrated for centralized data storage, remote configurations and firmware updates
Features | Capabilities |
|---|---|
Integrated three phase AC and DC measurements
| Measures, stores, and analyzes three phase electrical power consumption
|
High accuracy, better than 1% (0.2% – 0.5%)
| Measured DC voltage, current, and power of industrial battery chargers
|
WiFi connectivity with remote configuration and automatic data uploads
| WiFi connectivity with remote configuration and automatic data uploads
|
Remote cloud programming and firmware updates
| Configurable for 3-phase 3-wire and 4-wire AC power systems
|
AC line powered with integrated battery backup
| Remote cloud programming and firmware updates
|
Metrics | Performance |
|---|---|
AC Voltage Measurements | 208/380/480VAC 3-phase, 3-wire & 4-wire
|
AC Current Measurements | 50A/100A/200A Clamp-On CTs
|
Accuracy | Better than 0.5%
|
Connectivity | WiFi & Ethernet |
Battery Backup | 15 min for connectivity / data upload
|
External Power | 5V and 12V
|
Size | 6” x 3.75” x 1.25” |
Relay Control | Turning On/Off AC load |
