IoTEmeter® SP — Equipment-Level Power Metering
Cellular-connected inline energy metering and remote power control for individual equipment and dedicated outlets, providing visibility into energy consumption without requiring on-site network infrastructure.
IoTEmeter® SP — Equipment-Level Power Metering
Inline energy metering and remote power control for individual equipment and dedicated outlets—cellular connected by design.
MONITOR AND CONTROL POWER AT THE EQUIPMENT LEVEL
Inline Energy Metering with Remote Power Control
The IoTEmeter SP Series is an equipment-level, inline power meter designed for individual assets and dedicated AC outlets. Installed directly in-line with a single power feed, it measures energy consumption for a specific outlet while providing built-in remote power control.
With integrated current and voltage sensing, cellular connectivity, and remote reboot and scheduling capabilities, IoTEmeter SP gives teams precise, asset-specific energy data and the ability to manage power without on-site access.
What IoTEmeter SP Enables:
Equipment-Level Energy Visibility
Measure energy consumption for a specific asset or dedicated outlet to understand usage patterns and operating costs.
Remote Power Control
Remotely reboot, schedule, and manage power delivery without requiring on-site access.
Cellular Connectivity
Maintain visibility and control without relying on local network infrastructure.
Industrial & Outdoor Ready
Deploy in industrial environments with IP66 and NEMA 4X-rated protection.

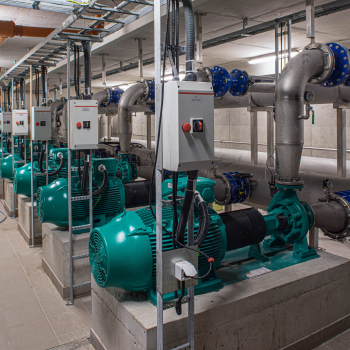

Dedicated Asset Monitoring
Monitor individual equipment through a one-to-one installation model for precise energy tracking.
Environmental Monitoring (Optional)
Extend visibility with optional temperature and humidity monitoring capabilities.
Choose Your
Power
Choose Your
Power
IoTEmeter SP-1
2‑pole, single‑phase equipment
IoTEmeter SP-3
3‑pole, 3‑phase infrastructure systems

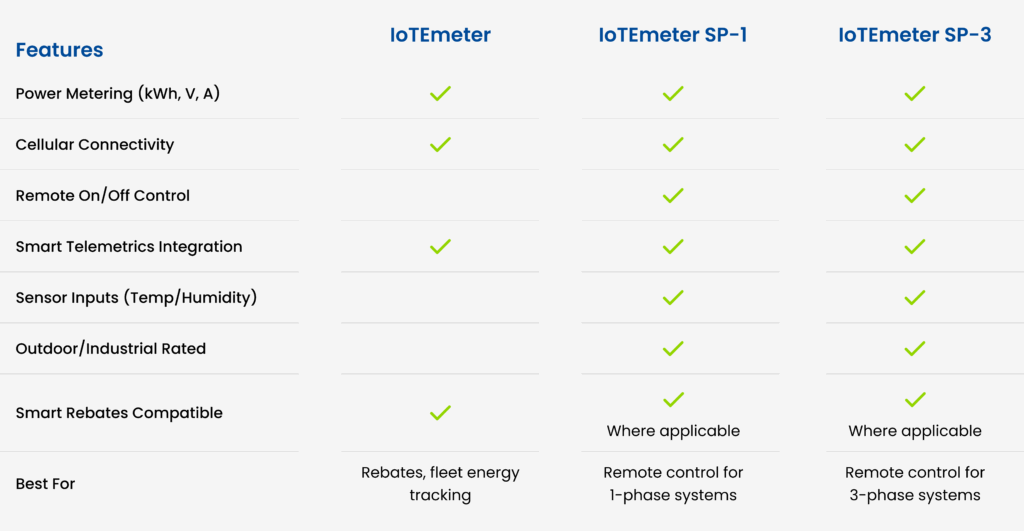

Choose the Right IoTEmeter SP Model
Choose Your
Power
IoTEmeter SP-1
2‑pole, single‑phase equipment
IoTEmeter SP-3
3‑pole, 3‑phase infrastructure systems
Best For:
Best For:

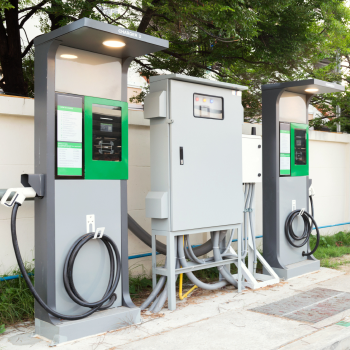

Legacy EV Charging Ports

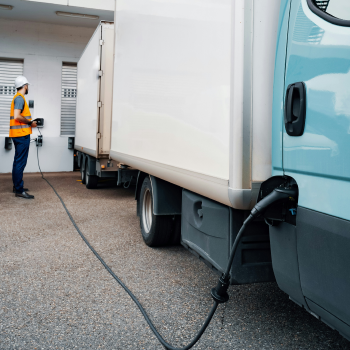

Standalone Industrial Equipment
eTRUs
Onboard Chargers
Legacy EV Charging Ports
eTRUs
Standalone Industrial Equipment
Onboard Chargers
Choose the Right IoTEmeter
IoTEmeter SP-1 Model Specs
Design
Dimensions
8.33" x 6.36" x 3.94"
Indoor/Outdoor
Outdoor (UV Stabilized)
AC Ratings
Voltage Rating
208/240VAC, 50/60Hz
Current Rating
40A (50A resistive)
Number of Poles
Two
Power Pole Terminations
Screw Terminal Block-6AWG
Optional Accessories
Dry Contacts
One
Temperature/Humidity Sensor Port
Optional
Internal Backup Battery
Battery Chemistry
Li-Polymer Battery
Battery Voltage/Capacity
~3.7V / 3200mAh (UL)
ETL/cETL
UL1642, IEC62133(CB)
Connectivity
Cell
LTE Cat 1
Cloud Connectivity
3-Year Cloud Access & Alerts
Rating
Flammability Rating
UL94-5VA
IP Rating
IP66
Safety Compliance
ETL/cETL
DTM UL 60950-1 (ITE Safety)
FCC
DTM FCC Title 47 CFR 15B, Class A
CE
DTM CE
ROHS
Compliant

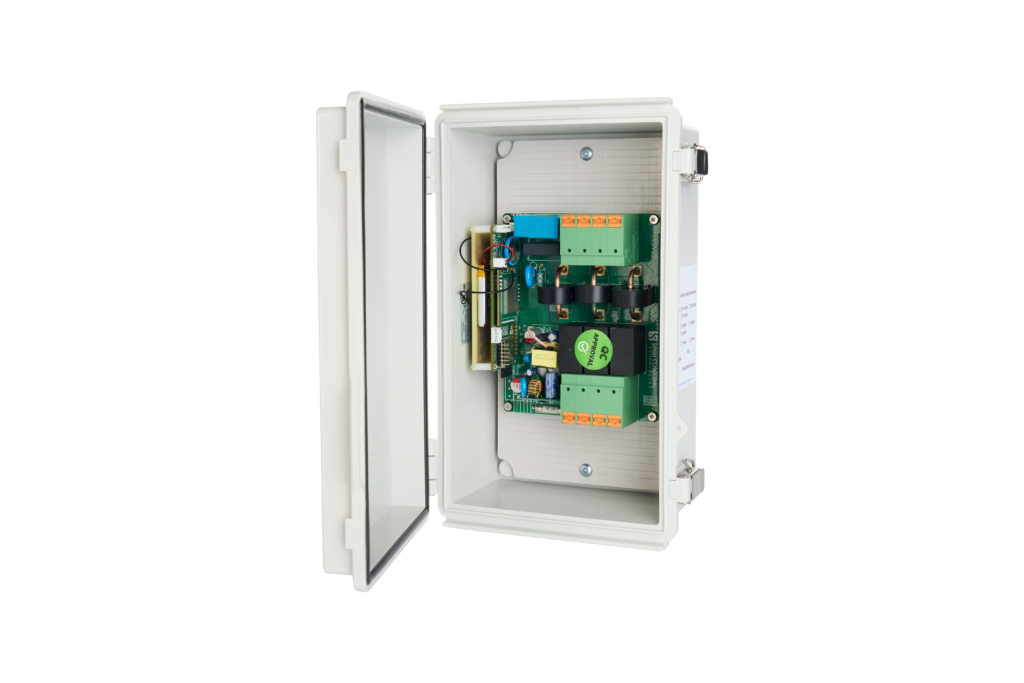

IoTEmeter SP-3 Model Specs
Design
Dimensions
8.33" x 6.36" x 3.94"
Indoor/Outdoor
Outdoor (UV Stabilized)
AC Ratings
Voltage Rating
480VAC, 50/60Hz
Current Rating
40A (50A resistive)
Number of Poles
Three
Power Pole Terminations
Screw Terminal Block-6AWG
Optional Accessories
Dry Contacts
One
Temperature/Humidity Sensor Port
Optional
Internal Backup Battery
Battery Chemistry
Li-Polymer Battery
Battery Voltage/Capacity
~3.7V / 3200mAh (UL)
ETL/cETL
UL1642, IEC62133(CB)
Connectivity
Cell
LTE Cat 1
Cloud Connectivity
3-Year Cloud Access & Alerts
Rating
Flammability Rating
UL94-5VA
IP Rating
IP66
Safety Compliance
ETL/cETL
DTM UL 60950-1 (ITE Safety)
FCC
DTM FCC Title 47 CFR 15B, Class A
CE
DTM CE
ROHS
Compliant
Gain Visibility and Control at the Equipment Level
Learn how IoTEmeter SP provides equipment-level energy monitoring and remote power control for dedicated assets, chargers, and critical infrastructure.
