About Switch Always On™

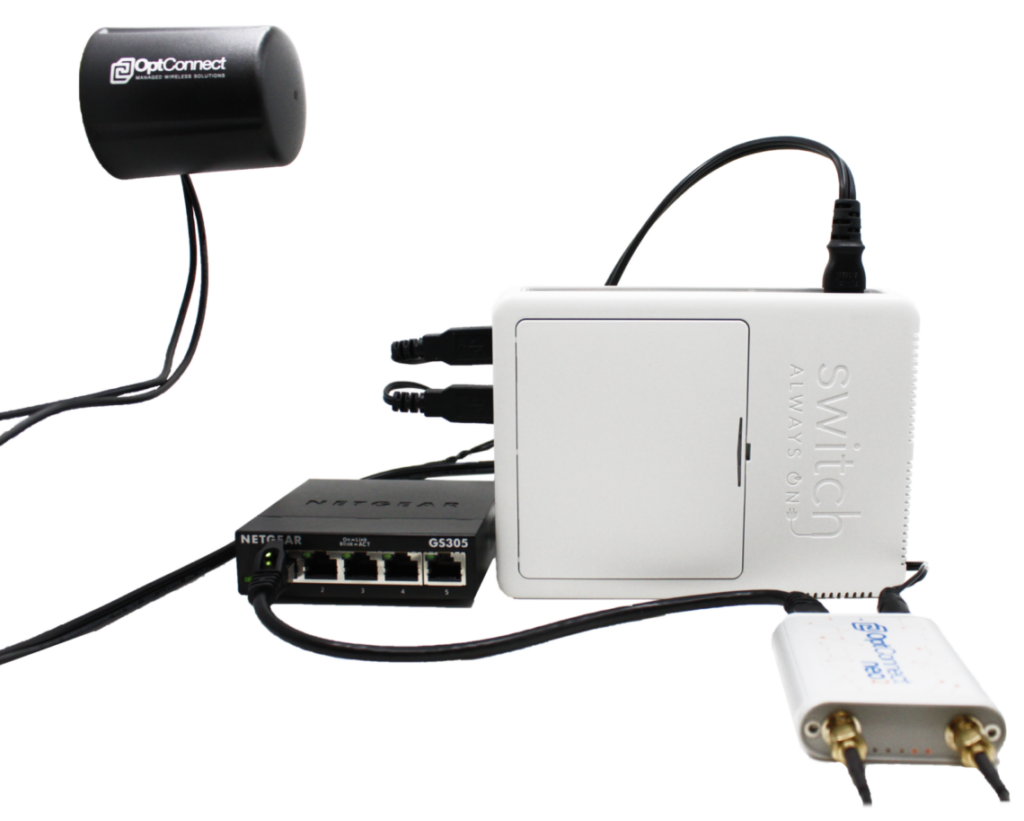

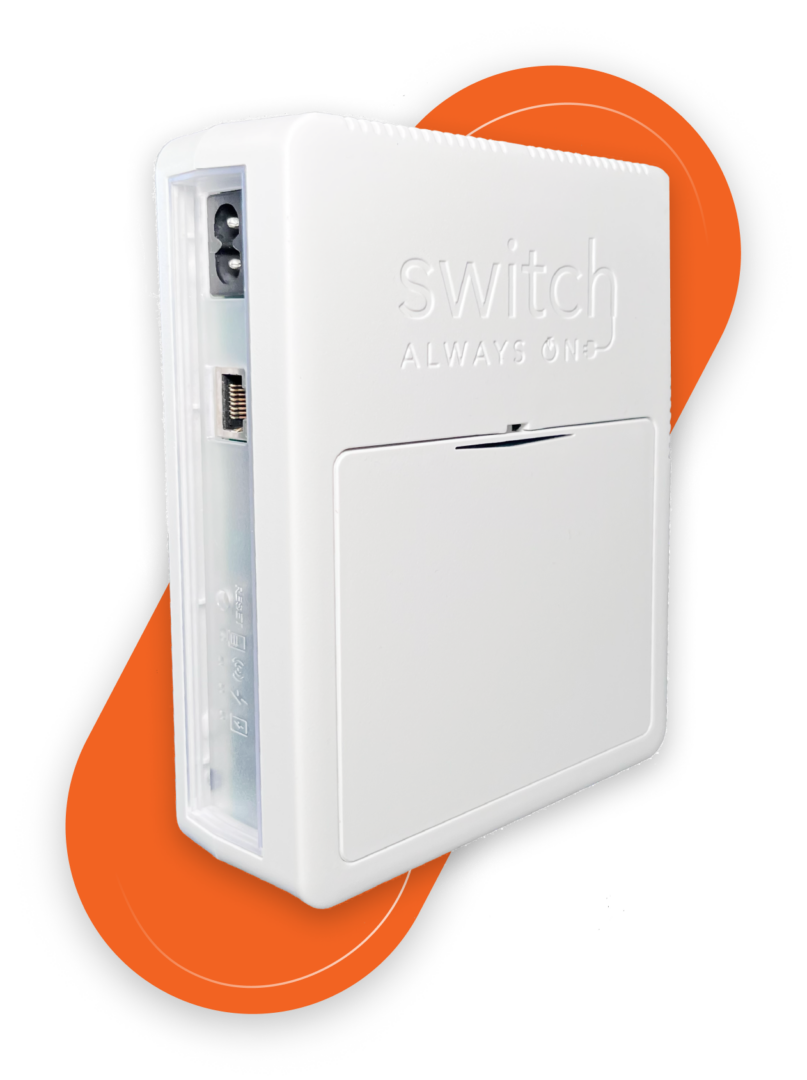

Switch Always On™ is a smart IoT DC micro power supply (UPS) designed to provide uninterrupted power and connectivity for networking devices.
- Remotely manage and monitor network connectivity
- Auto-recycle power to network devices by port preference
- Receive real-time alerts anytime network connectivity is disrupted
Features | Capabilities |
---|---|
Multiple DC Output Ports
| Supports up to (4) devices
|
Long-Lasting Backup Battery
| Provides up to (2) hours of backup power
|
Cloud Monitoring & Configuration
| Protects against power surges and dips
|
Hands-Free Power Cycling
| Eliminates the need for manual power cycling
|
Real-Time Updates & Alerts | Accessible via mobile and web cloud applications
|

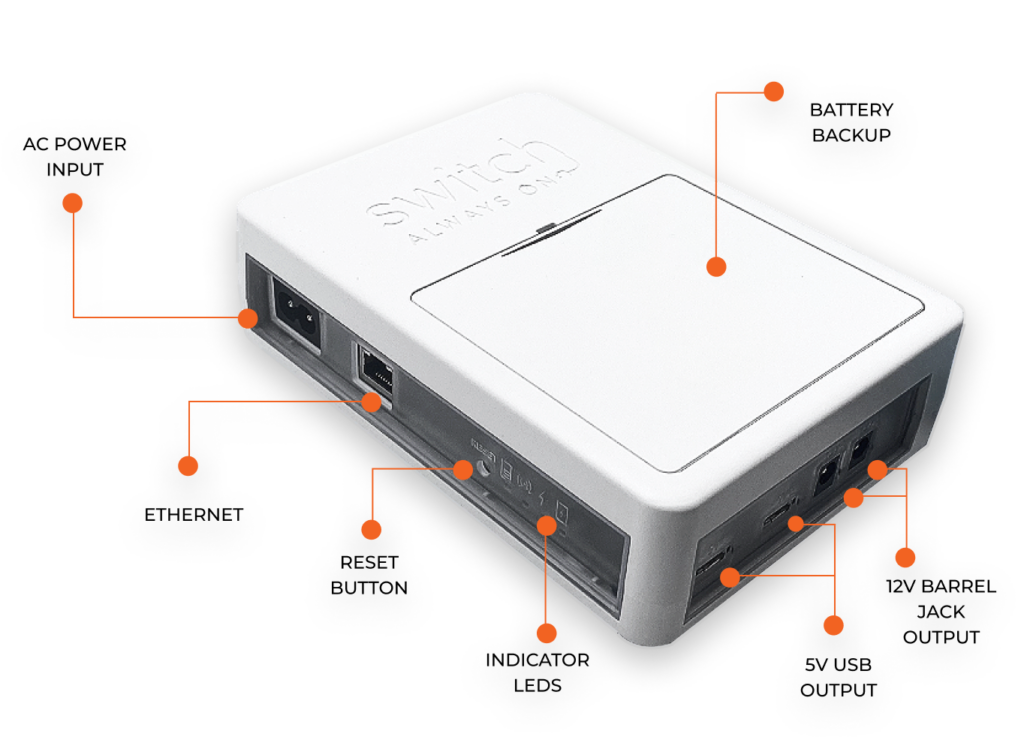

Specifications

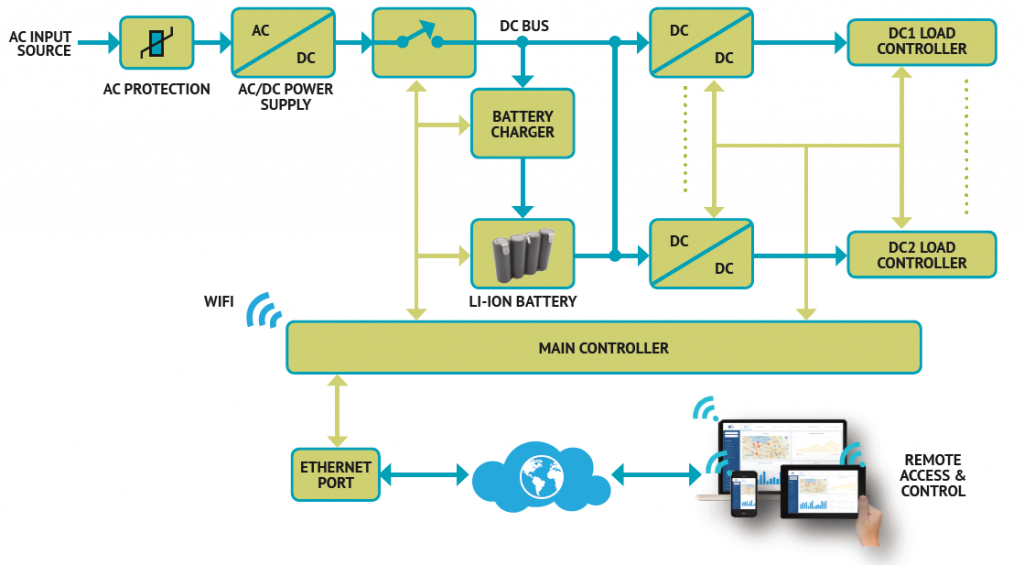

Architecture

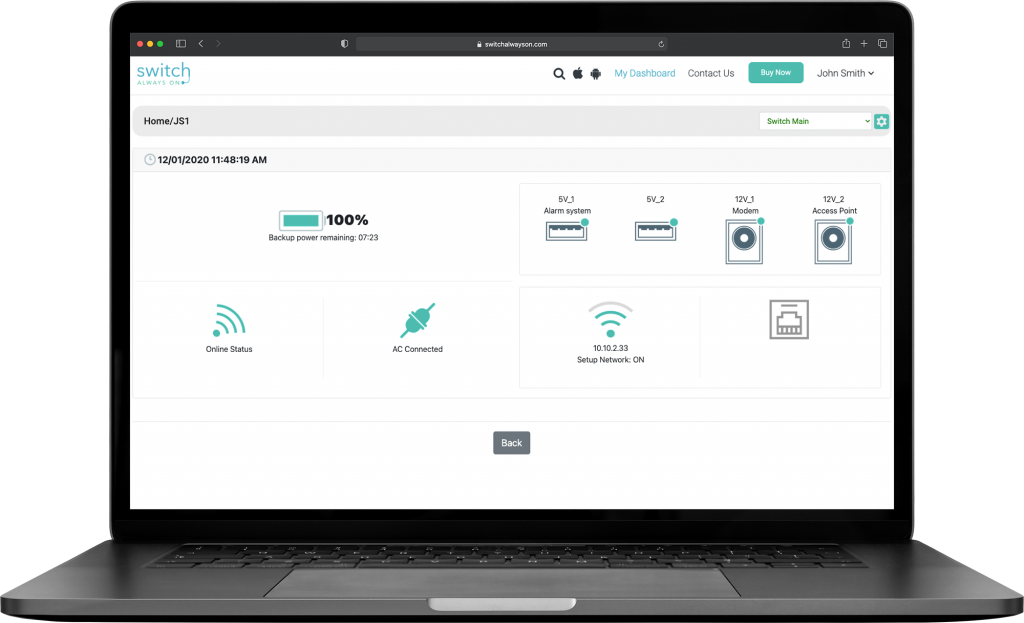

Cloud APP
Metrics | Performance |
---|---|
AC Power | 120/240 VAC (50/60Hz), 1.2A
|
AC Protection | TVS/MOV
|
Backup Time | ~1h @ 100% load ~2h @ 50% load |
Battery Size | 14.8V / 2600mAH (37Whrs)
|
Connectivity | WiFi / Ethernet
|
Efficiency | >90% @ 1/2 load
|
Output Ports | 2 x 12V @ 2.5A 2 x 5V @ 3.5A |
Safety | UL 60950-1, CE, ROHS
|
Size (WxDxH) | 4.8” x 6.5” x 1.7”
|
Weight | ~2.0 lb
|
